Raspberry Pi 500

Raspberry Pi 500

$96.00

+ Free Shipping

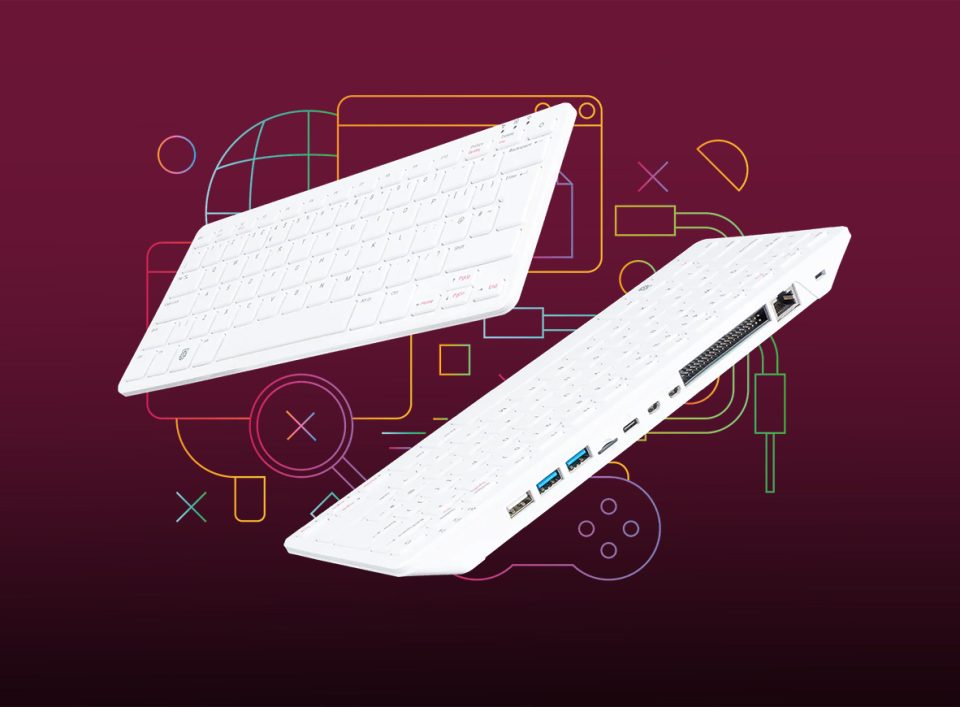

The Raspberry Pi 500 packs the full power of a Raspberry Pi 5 into a premium keyboard, creating the ultimate all-in-one desktop. This updated bundle now includes a 32GB A2-Class MicroSD card!

At its core, you get the same flagship specs: the quad-core 64-bit Arm processor, RP1 I/O controller, and 8GB of RAM found in the Raspberry Pi 5. A built-in aluminum heatsink ensures smooth, stable performance under load, while driving stunning dual 4K displays.

Beyond the specs, we’ve refined the details: USB ports are repositioned for better access, and it features a dedicated power button (just like the Pi 5). The new all-white design isn’t just a fresh look—we think it’s brilliantly sharp.

分类：




Raspberry Pi 500

Available in Unit only or Desktop kit

The refined personal computer

Raspberry Pi 5 everything computer main image

Specifications

Processor 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
RAM 8GB LPDDR4X-4267 SDRAM
Storage 32GB Raspberry Pi A2-Class Micro SD card included
WiFi Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac
Bluetooth Bluetooth 5.0, BLE
Ethernet Gigabit Ethernet
USB 2 × USB 3.0 port and 1 × USB 2.0 port
GPIO Horizontal 40-pin GPIO header
Video & sound 2 × micro HDMI port (support up to 4Kp60)
Multimedia H.265 (4Kp60 decode);
OpenGL ES 3.0 graphics
SD card support MicroSD card slot for operating system and data storage
Keyboard 78-key (US) compact keyboard
Power 5V DC USB-C port
Operating temperature 0°C to +50°C ambient
Dimensions 286 × 122 × 23 (mm)

Products Features

Raspberry Pi 500 features the same quad-core 64-bit Arm processor and RP1 I/O controller found in Raspberry Pi 5. With a one-piece aluminium heatsink built in for improved thermal performance, your Raspberry Pi 500 will run fast and smoothly even under heavy load, while delivering glorious dual 4K display outputs.

For those looking for the complete Raspberry Pi 500 setup, the Raspberry Pi 500 Desktop Kit comes with a mouse, a USB-C power supply and an HDMI cable, along with the Raspberry Pi Beginner’s Guide, to help you get the most out of your new computer.

Specification：

  • 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 512KB per-core L2 caches and a 2MB shared L3 cache
  • VideoCore VII GPU @800MHz, supporting OpenGL ES 3.1, Vulkan 1.2
  • Dual 4Kp60 HDMI® display output
  • 4Kp60 HEVC decoder
  • LPDDR4X-4267 SDRAM (options for 1GB/2GB/4GB/8GB/16GB)
  • 2.4GHz/5GHz dual-band 802.11ac Wi-Fi®
  • Bluetooth 5.0 / Bluetooth Low Energy (BLE)
  • TF card slot, with support for high-speed SDR104 mode
  • 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
  • Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
  • 2 × 4-lane MIPI DSI/CSI port
  • PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
  • 5V/5A DC power via USB-C, with Power Delivery support
  • Raspberry Pi standard 40-pin header
  • Real-time clock (RTC), powered from external battery (not included)
  • Onboard power button for power on/off without disconnecting power adapter

Raspberry Pi 500 VS Raspberry Pi 500+

Module Raspberry Pi 500 Raspberry Pi 500+
Processor Broadcom BCM2712
4-core 64-bit Arm Cortex-A76 CPU
2.4GHz frequency
L1 cache: 64KB data + 64KB instruction per core
L2 cache: 512KB per-core
L3 cache: 2MB shared
RAM 8GB LPDDR4X-4267 SDRAM 16GB LPDDR4X-4267 SDRAM
Storage 32GB Raspberry Pi A2-Class MicroSD card included 256GB Raspberry Pi Solid State Drive
(Pre-installed Raspberry Pi OS)
Support for M.2 NVMe Solid State Drives up to 2280 form factor
MicroSD card slot
WiFi Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac
Bluetooth Bluetooth 5.0, BLE
Ethernet Gigabit Ethernet
USB 2 × USB 3.0 ports, 1 × USB 2.0 port
GPIO Horizontal 40PIN GPIO header
Video & sound 2 × Micro HDMI ports (supports up to 4Kp60)
Multimedia H.265 (4Kp60 decode),
OpenGL ES 3.0 graphics
MicroSD card support MicroSD card slot for operating system and data storage
Keyboard 78 / 79 / 83 membrane keys (depending on regional variant) 84 / 85 / 88 mechanical keys (depending on regional variant)
Gateron KS-33 Blue low-profile switches
Power 5V5A DC USB-C port (PD support)
Operating temperature 0°C ~ 50°C
Dimensions 286.00 × 122.00 × 23.00 (mm) 312.00 × 123.06 × 35.76 (mm)

Optional Official Raspberry Pi Kits Available

Raspberry Pi 500


Raspberry Pi 500 Desktop Kit

For those looking for the complete Raspberry Pi 500 setup, the Raspberry Pi 500 Desktop Kit comes with a mouse, a USB-C power supply and an HDMI cable, along with the Raspberry Pi Beginner’s Guide, to help you get the most out of your new computer.

Official Documentation

URL：External Link
